Indoor
Clearances:
Top: 15cm
Sides: 20cm

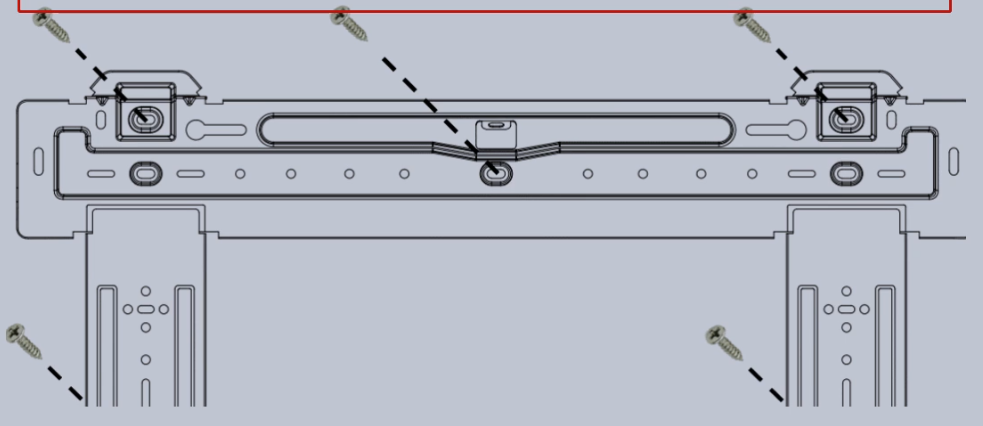

Mounting Plate:
| Pipe | Torque |
|---|---|
| 6.35 mm | 15-25 Nm |
| 9 mm | 35-40 Nm |
| 12 mm | 45-60 Nm |
| 16 mm | 73-78 Nm |
| 19 mm | 75-80 Nm |
- Drain hose gets wrapped in electrical tape
Outdoor
The thing sticking straight out is the valve
The ones pointing back are connections for tube
the ones pointing front is connection for vacuum pump
- Vacuum to < 0.1MPa
- Should hold within 0.05MPa for 5 minutes
- Open liquid valve 1/4 turn
- Remove vacuum hose
- Open both valves all the way
- screw on and tighten caps
Bottom valve is “Liquid”
Top valve is “gas”
