ehGoals:
-
Flow as much air through the motor as possible
-
Accommodate drive motors in all common swerve modules
-
Be usable with compressed air and onboard blower, with no reconfiguration
-
Look cool

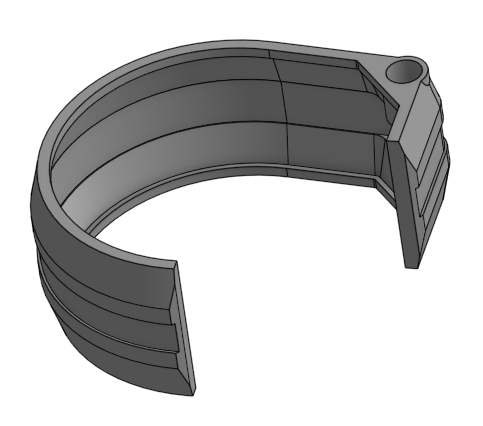

Cooling Jacket
V1
-
Takes pnumatics tubing input
-
Fits drive motor on MK4I/N, but not steer motor
-
Mirrored variant
Improve:
- Requires supports
V2
- Add zip tie grove
On Board Blower
-
Produce enough static pressure to move air through thin tubes
-
Ideally have additional low pressure output.. membrane regulator?? or maybe just 2 fans
-
Powered from switchable PDH port for simplicity, but have external barrel jack
-
Take tube for input that can come from like an ice box or something.. dry ice sub-zero cooling???
Maybe use a fan like this?
- Likely to have good high static pressure because it’s a centrifugal fan
Should each module just have it’s own blower??
