Sample:
Simple Force Sample

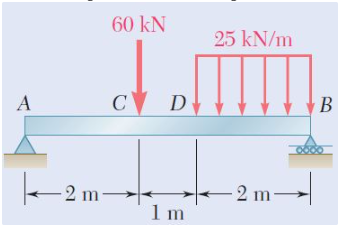

For the loading shown where h = 0.3:
shear-bending-moment-diagram
About 1
Shear: +15 kN
Bending Moment: 0 kNm
About 2
Shear: +15 kN
Bending Moment: 15 kNm CW
About 3
Shear: +40 kN
Bending Moment: 15 kNm CW
About 4
Shear: +40 kN
Bending Moment: 27 kNm CW
About 5
Shear: +10 kN
Bending Moment: 27 kNm CW
About 6
Shear: +10 kN
Bending Moment: 31 kNm CW
About 7
Shear: +30 kN
Bending Moment: 31 kNm CW
About 8:
Shear: +30 kN
Bending Moment: 40 kNm CW
Distributed Force Sample
