- 33cm (900mhz) ISM
- Device power maximum 30dbm, effective (inc antenna gain in peak direction 36dbm)

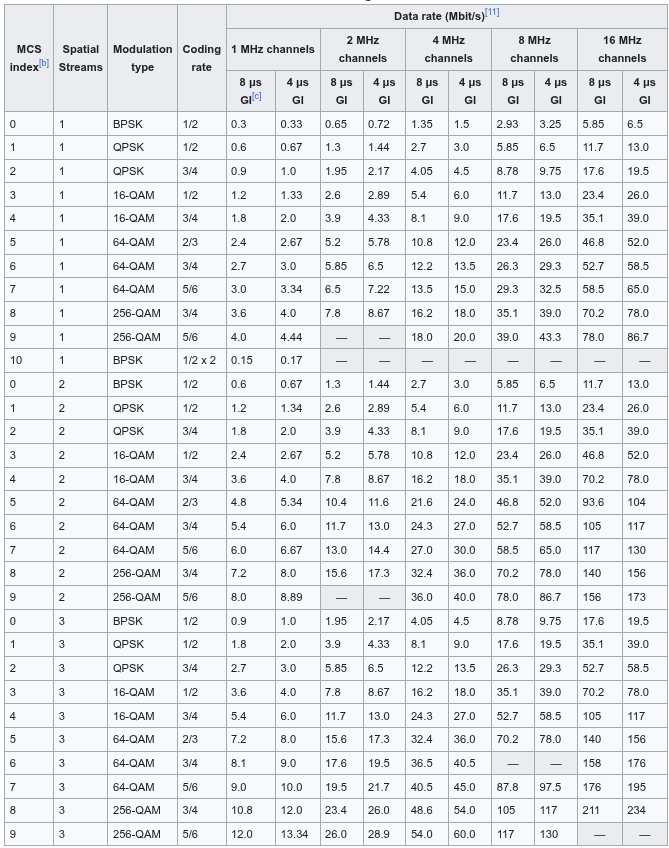

Many different modulation, bandwidth, bitrate options
Interfaces
Boards, Dongles (Anything not requiring a custom PCB)
Seeed Wio-WM6180
- PCIe Interface (Presumably in SPI mode)
- Quectel FGH100M-H
Seeed Xiao HaLow
- SPI interface (special Xiao Layout)
- Quectel FGH100M-H
Heltec Ht-HC01p
- PCIe Interface (Presumably in SPI mode)
- Heltec HT-HC01
TelDatics TD-HALOC
- m.2 Key E 2230
- USB, SPI, UART (????)
- TelDatics TD-HALOM
- Standalone operation with integrated arm cpu
TelDatics TD-WRLS
- Normal sized thing with GPIO
- Holds a TD-HALOC
There are also plenty of bridge devices that come in an enclosure with software like the heltec gateway and dongle
SOMs (Thing with smd pads that you solder to your own board)
| Maximum Data Rate | Maximum Output Power | Chipset | Interface | Supply Voltage | Physical Size (x,y,z)mm | Ant | |
|---|---|---|---|---|---|---|---|
| Heltec HT-HC01 | 32.5Mbps | 21 dBm | MM6108IQ | SDIO 2.0, Dual UART | 3-3.6 | 18.5,14,26 | pad |
| Quectel FGH100M-H | 32.5Mbps | 21 dBm (only for 1Mhz) | ??? | SDIO, SPI | 3-3.6 (1.8 IO possible) | 13,13,2.2 | pad |
| Silex SX-SDMAH | 32.5Mbps | 23 dBm | MM6108 | SDIO, SPI | 3.3 | 17,18,2.6 | ufl |
| TelDatics TD-HALOM | ?? | 30 dBm | ?? | SPI, More?? | 3.3 (1.8 IO possible) | 18,13.5,2.4 | ufl |
